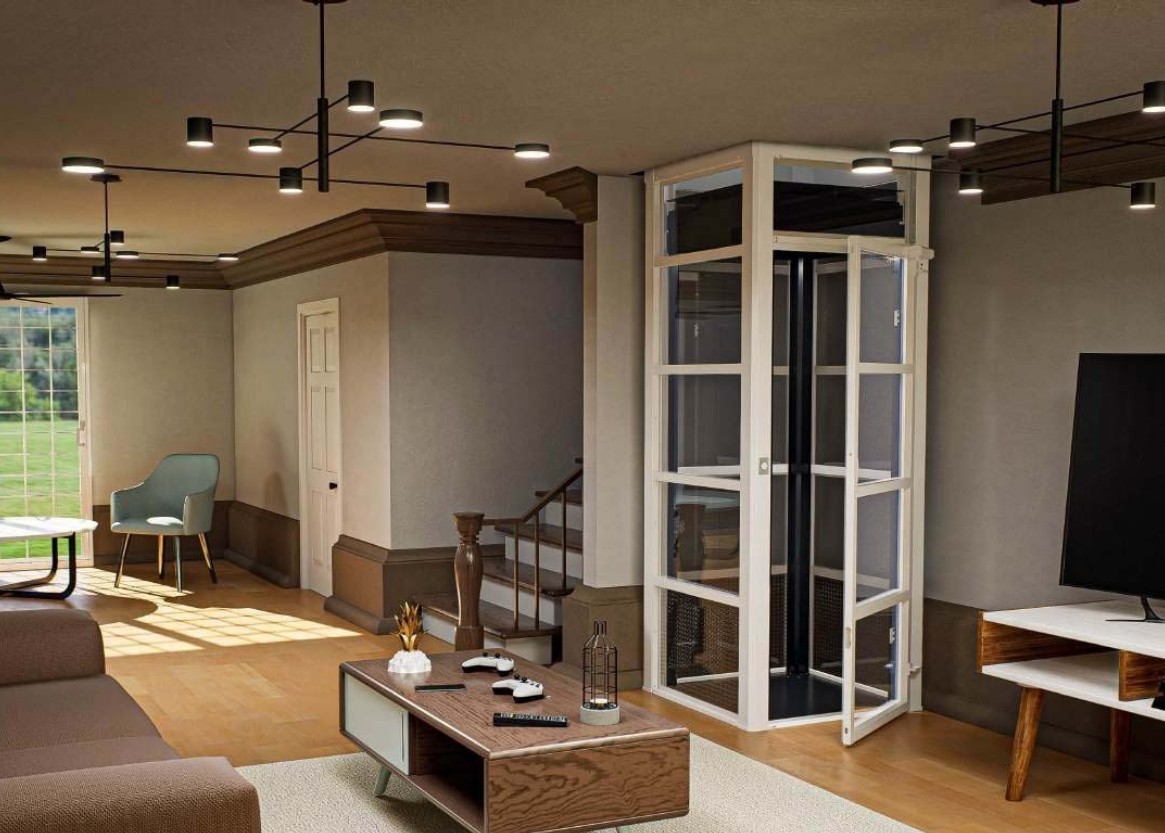

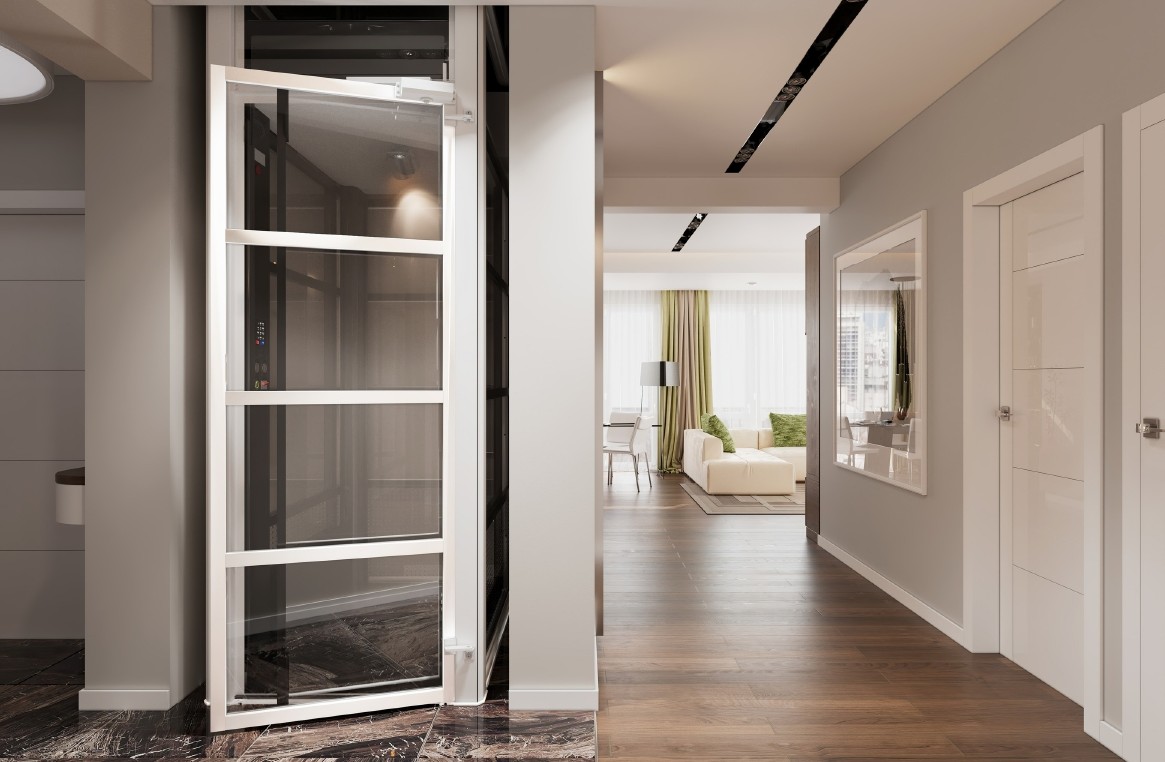

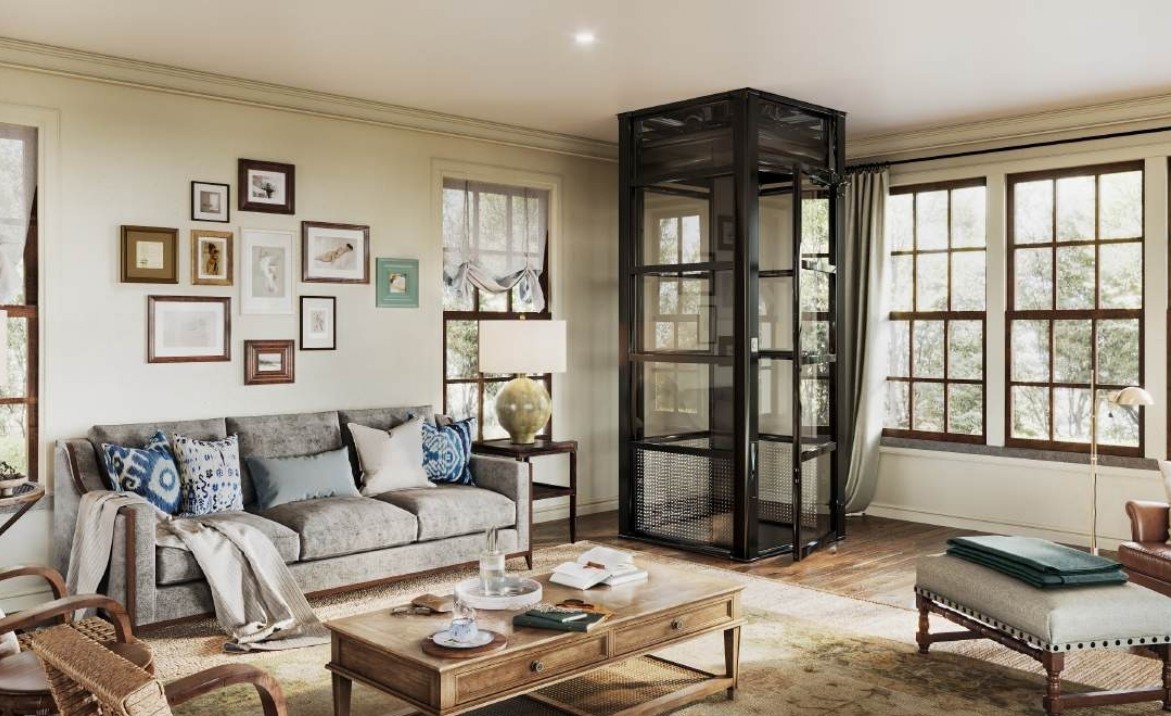

The Cube, an innovative air-driven home elevator system designed and manufactured by Pneumatic Vacuum Elevators, LLC (PVE), founded in 2002 in Miami, Florida, USA. It is the world's only square air-driven home elevator, utilizing patented Pneumatic Technology® to create lift through air suction and gravity. This self-supporting elevator requires no traditional shaft or machine room, making it perfect for retrofits and new construction. It supports up to 2 passengers with over 450 lbs capacity and is available worldwide with more than 20,000 units installed. Key features include:

Technology and Operation: Features a compact vertical cube with a fully enclosed cabin. Ascent is powered by air extraction from the top, creating a vacuum lift, while descent uses gravity. Components include an aluminum frame with polycarbonate panels for 360° visibility, steel rails, and top-mounted PVE machinery (turbine, valves, controller). It operates with a plug-and-play 220-240V power system, using no oils or gases for eco-friendly performance.

Advantages:

• Innovative Solution: Minimal pre-construction, 2-3 day installation, certified for up to 35 ft total rise.
• Elegant Design: Sleek, space-efficient cube shape enhances modern living spaces with panoramic views and low energy use.
• Absolute Safety: Annually certified by TUV, with automatic descent in power failure and safety features like an alarm button.
• Ease of Use: Smooth, quiet operation suitable for 2-3 story homes, transporting walkers, luggage, and groceries.
• Maintenance and Efficiency: Requires minimal space, energy, and maintenance compared to traditional elevators.

General Specifications:

• Power Supply: 220-240V, 60/50 Hz, 30amp single phase.
• Maximum Distance: 35 ft total rise.
• Speed: 40 fpm.
• Installation: Self-supporting, no pit required, minimum overhead clearance 97”-107” depending on mount, 2-3 day install.
• Safety Features: Power failure descent, alarm button, multiple door configurations.
• Customization: Door options (same-side, opposite, 90°), colors (Black standard, Beige/White upgrades), optional seat, handrail, USB port.
• Global Presence: Manufactured in USA, distributed via showrooms worldwide.

The Cube is designed for residential use, blending functionality and style as "The Only Square Powered By Air," elevating your standard of living with ease and efficiency.
