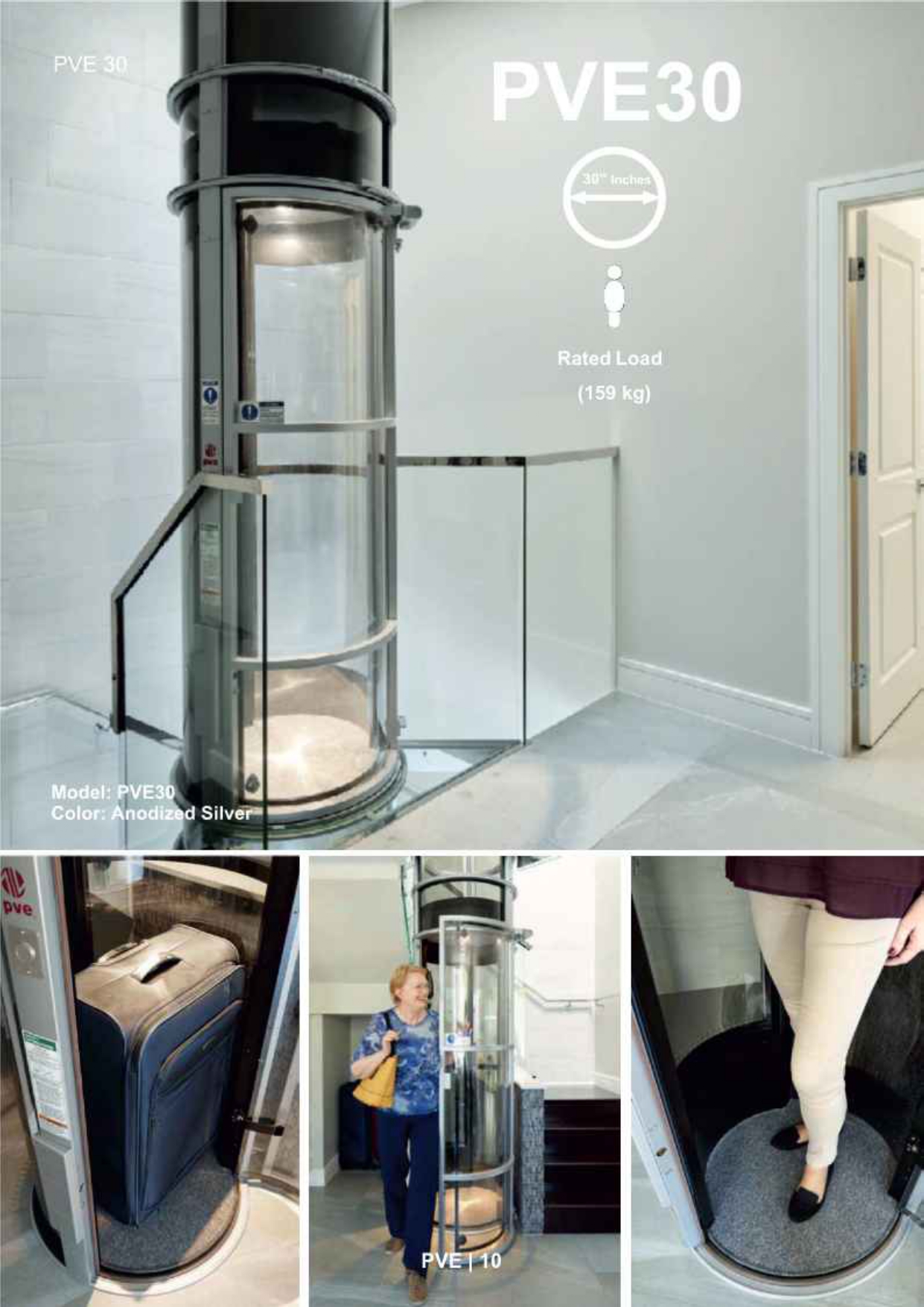

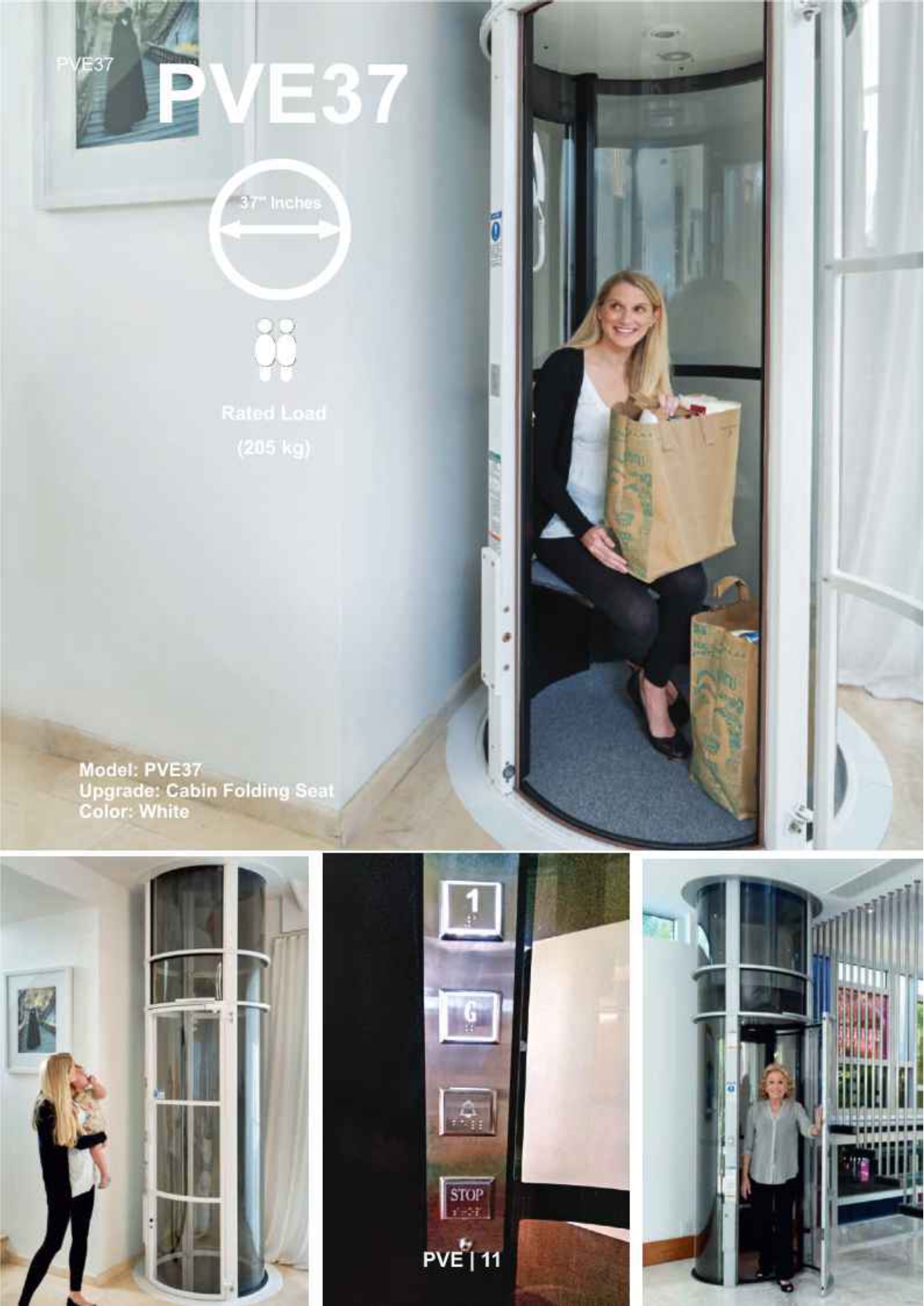

The Pneumatic Vacuum Elevator (PVE), a revolutionary air-driven home elevator system invented and manufactured by Pneumatic Vacuum Elevators LLC (PVE), founded in 2002 in Miami, Florida, USA. It is the world's only air-driven home elevator, utilizing patented Pneumatic Technology™ to create areas of higher and lower pressure within a fully enclosed vertical cylinder, allowing the car to move smoothly up and down through air suction and gravity. This self-supporting, transparent elevator requires no traditional hoistway or machine room, making it ideal for retrofits and new construction projects. It offers three passenger models (PVE 30, PVE 37, and PVE 52—not PVE 57, as the document clearly specifies PVE 52 based on technical details and diagrams; this may be a typographical error in the query) to fit various project needs, with over 20,000 units installed worldwide across 100+ countries. Key features include:

• Technology and Operation: Combines a vertical cylinder with a fully enclosed car. During ascent, the system extracts air from the top, creating a vacuum zone that lifts the car; during descent, air intake allows gravity-assisted movement. Components include: exterior cylinder (aluminum frame with polycarbonate panels for panoramic visibility and safety), car (polycarbonate panels, steel rails, and safety mechanisms), and PVE machinery (turbine, valves, and controller located on top of the upper cylinder for operation). It uses a plug-and-play system with 220V power, minimal lubricants, and no oils or gases for eco-friendly operation.
• Advantages:
  • Innovative Solution: Minimal pre-construction (no shaft required), installation in 2-3 days, certified for up to 50 ft total rise.
  • Elegant Design: Modern, eco-friendly aesthetics using high-quality materials; panoramic views enhance living spaces; operates as a "Green Elevator" with low energy consumption and simple descent using gravity.
  • Absolute Safety: Annually certified by TUV (one of the world's leading elevator certification organizations). In power failure, automatic descent to the lowest level with mechanical door lock opening for safe exit. Includes alarm button and safety telephone.

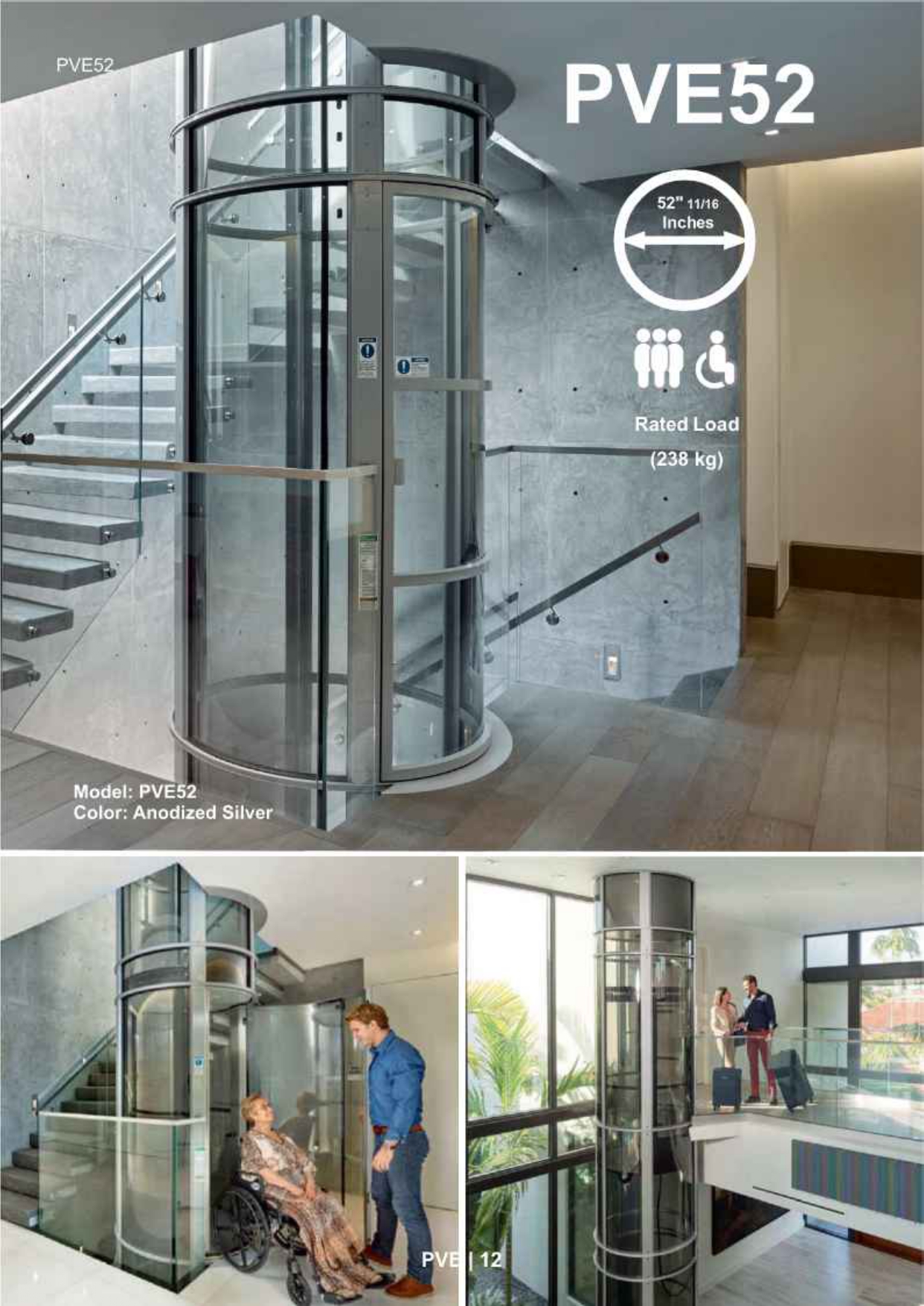

  • Ease of Use: Remains in the comforts of home with smooth, quiet operation; wheelchair accessible in the PVE 52 model.
  • Maintenance and Efficiency: Less space, energy, and maintenance than traditional elevators; fully certified for home use.
• General Specifications (Applicable to All Models):
  • Power Supply: 220V.
  • Maximum Distance: 50 ft (15.24 m) total rise.
  • Speed Options: Variable from 20-30 ft/min (0.10-0.15 m/s).
  • Installation: Self-supporting; finished pit diameter varies by model; minimum upper floor height clearance of 8 ft 10 in (lower clearances possible upon consultation); 2-3 day installation.
  • Safety Features: Power failure automatic descent, alarm button/safety telephone, automatic door option available.
  • Customization: Door configurations (0°, 90°, 180°, 270°, or combinations); colors (e.g., anodized silver, white); optional wheelchair access, folding seats, in-line or walk-through doors.
  • Global Presence: Manufactured in USA, Argentina, and Spain; 129 showrooms worldwide; distributed in India.
  • Load and Capacity: Varies by model (detailed below).
  • Energy Efficiency: Nominal impact on annual electrical usage; eco-friendly with no harmful lubricants.

The PVE Lift is designed for residential use, blending art and functionality as "A Work of Art. Powered by Air." It supports up to three passengers or wheelchair access, with LED interior lighting and fan for comfort.
